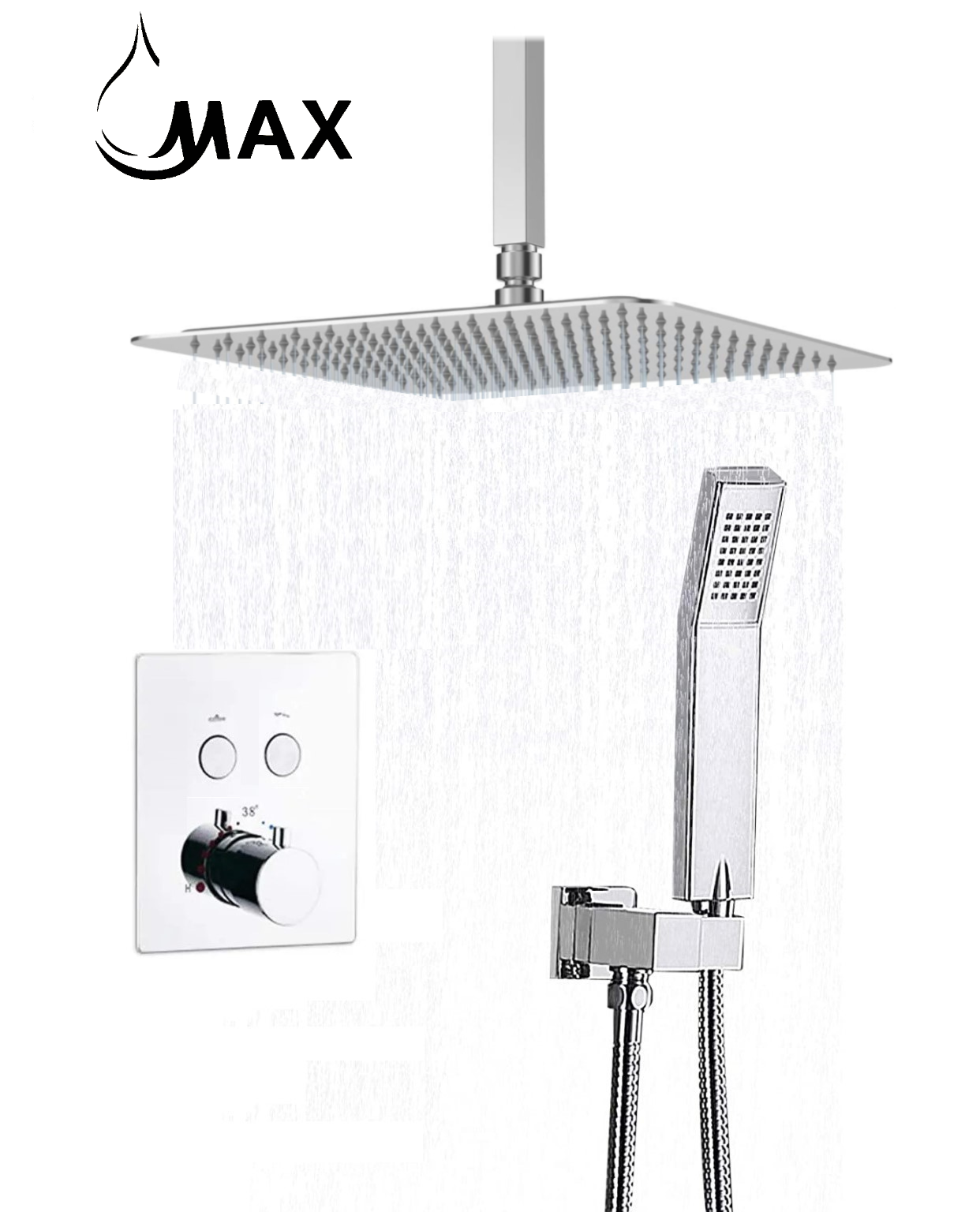

Complete Ceiling-Mount Shower System with Rough-In Valve Included
Upgrade your shower with this ceiling-mount thermostatic shower system, featuring modern push-button control and precise temperature management. This complete 2-function system includes the thermostatic rough-in valve, square rain shower head, ceiling-mount arm, handheld shower, hose, trim, and installation hardware.
Operate the rain shower and handheld shower independently or enjoy both functions simultaneously.
Key Features
Individual ON/OFF Push-Button Controls: Each shower function has its own dedicated push button, allowing you to turn the rain shower and handheld shower ON or OFF independently.
Separate Temperature Control Knob: Set and adjust the water temperature separately from the ON/OFF push-button controls.
Thermostatic Temperature Control: Helps maintain a stable water temperature and reduce sudden temperature fluctuations for greater comfort.
Simultaneous Function Operation: Use the rain shower, handheld shower, or both at the same time.
cUPC Certified Shower Valve: The included shower valve is cUPC certified to applicable North American plumbing standards.
Ceiling-Mount Rain Shower: The square rain shower head connects to the included ceiling-mount arm for a clean, overhead shower arrangement.
PowerDrench Rain Shower: Delivers a full, invigorating spray for a comfortable and refreshing shower experience.
Ceramic Cartridge: Engineered for smooth operation, reliable performance, and long-term durability.
Polished Chrome Finish: A bright, contemporary finish that complements a wide range of bathroom designs.
Replaceable Cartridges with Lifetime Warranty: Both the temperature-control and push-button ON/OFF cartridges are backed by the MAX Faucets Lifetime Warranty and can be replaced individually for future servicing.
Water Flow Rate
Rain Shower Head: Maximum 1.8 GPM (6.8 L/min)
Handheld Shower: Maximum 1.8 GPM (6.8 L/min)
Specifications
Brand: MAX Faucets
Model Number: YM-MC7122TH-C
UPC Code: 7403424156071
Finish: Chrome
Functions: 2
Valve Type: Thermostatic Push-Button Rough-In Valve
Function Operation: Independent or Simultaneous
Certification: cUPC – Shower Valve
Shower Head Mounting: Ceiling-Mount Arm
Valve Connections: 1/2" NPT
Product Weight: 3,500 g
Package Weight: 4,000 g
Package Dimensions: 20" × 15" × 5.5"
What's Included
1 × Thermostatic Push-Button Rough-In Valve
1 × Chrome Valve Trim & Control Assembly
1 × Square Rain Shower Head
1 × Ceiling-Mount Shower Arm
1 × Shower Arm Escutcheon
1 × Handheld Shower Outlet with Adjustable Holder
1 × Handheld Shower Escutcheon
1 × Handheld Shower Sprayer
1 × 60" Handheld Shower Hose
1 × Installation Hardware Set
1 × Installation Guide
1 × Warranty Information
Installation

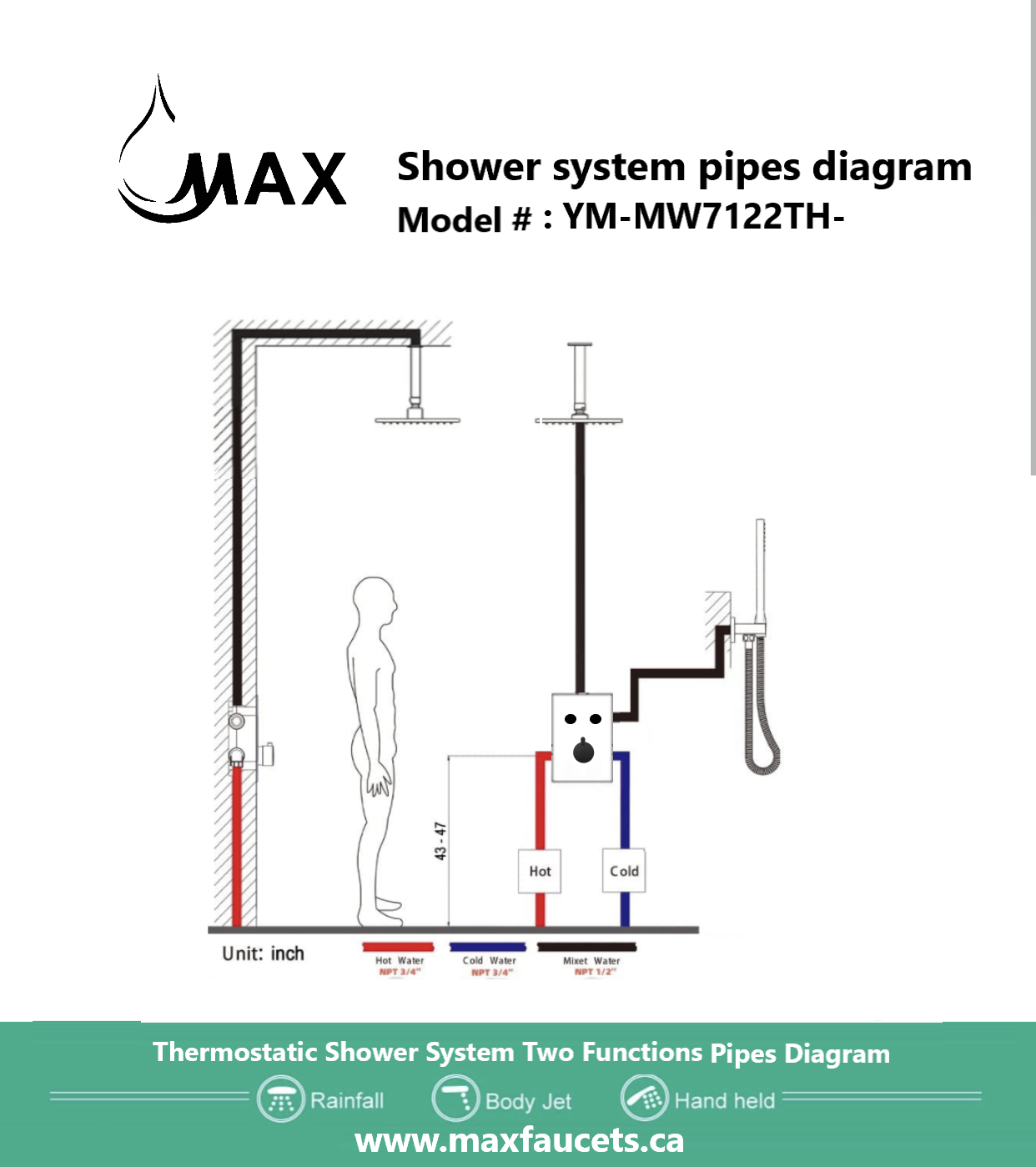

Designed for concealed installation using standard 1/2" NPT North American plumbing connections. The rain shower head requires a ceiling water connection for the included ceiling-mount arm.
Professional installation by a qualified plumber is recommended. Review the technical specifications and installation guide before rough-in to confirm component placement and plumbing requirements.
Product Documentation
📄 Technical Specifications
📄 Installation Guide
📄 Lifetime Limited Warranty
